Features
- It is simple structure, long life.
- Compatible with oil.
- Self-lubricating (for transferring lubricating oil)
- It can comply with ship class compatible and API610.
遠心 セントル うず巻 centrifugal pump
Main models and specifications

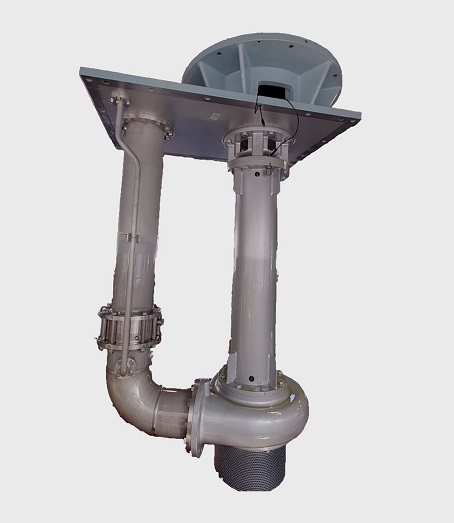

CSS Vertical Multi Impeller Pump
| Capacity |
15～570m3/h |
| Head |
10～150m |
| Flange Diameter |
40～250mm |
| Application |
Fuel oil, Waste oil, Lubricating oil (Option: API610), Water supply and drainage water supply and drainage
|
CSKT Vertical Multi Impeller Pump
| Capacity |
15～300m3/h |
| Head |
10～280m |
| Flange Diameter |
50～250mm |
| Application |
Lubricating oil |
List of other models
CHM-B Horizontal Multi Impeller Pump (Barrel Type)
CHM Horizontal Multi Impeller Pump (Balance Disc Type)
CHD Horizontal Multi Suction Single Impeller Pump (Horizontal Separate Type)
CHP Horizontal Single Impeller Pump (Center Support Type)
CHS Horizontal Single Suction, Single Impeller Pump
CVB Vertical Multi Impeller Pump
CHS Fire extinguish Pump
Application example
| Lubrication |
Turbine bearings Water supply pump bearings For engine lubrication |
| Burning |
Boiler burning |
| For water supply and drainage |
Fresh water supply, Industrial wastewater |
Main Corresponding Liquids
| Land |
Fuel oil, Waste oil, Lubricating oil, Fresh water, Factory effluent |
| Ship |
Cargo pumps |
