Hydraulic Power Pack Cargo Pump Remote Operation Panel
Purpose

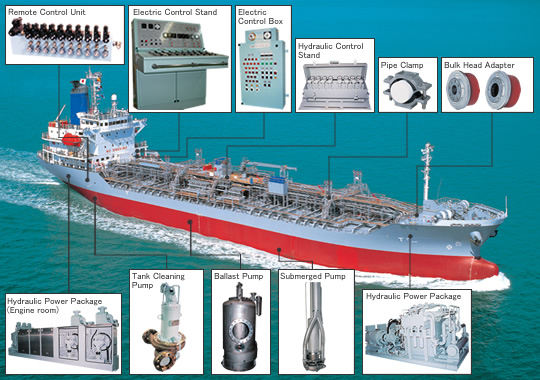

This product is cargo handling equipment for tankers. Including cargo pumps, hydraulic supply units, and operation panels,
Our product lineup includes cargo pumps, hydraulic supply units, operation panels, tank cleaning pumps, ballast pumps, and other products, as well as hydraulic equipment.
Features
- This product is a submerged cargo pump, with one pump per tank.
- The cargo pump is hydraulically driven, with an oil motor mounted on the drive unit, and the discharge volume can be controlled by a controller on the machine or a remote-control panel.
- Mechanical seals are used on both the cargo side and the hydraulic oil side of the shaft seal.
- Excellent sealing performance and high durability support improved uptime and safe cargo handling.
- The inside of the support pipe supporting the cargo pump from the deck is always in a dry atmosphere, and independent hydraulic piping on both the inlet and outlet sides reduces the amount of hydraulic oil used, contributing to low environmental impact with a structure that is easy to maintain.
- The exterior of the cargo pump is all stainless steel to accommodate a wide variety of cargoes, including liquid chemical products (IMO Type II and Type III), animal and vegetable oils, and refined petroleum products, and the material can be selected to match the cargo being loaded.
- Cargo pump can be optionally equipped with a suction strainer.
- The remote-control system includes an electric control panel installed in the cargo control room and a hydraulic control stand installed in the flying passage near the manifold. Also supports stand-alone control of controllers on the machine side without a remote-control panel.
Typical Specifications
- CVS-200-4 600m3/h x 125mLC (S.G.=0.75, Vis.=1cSt)
- CVS-150 300m3/h x 80mWC (S.G.=1.0, Vis.=1cSt)
- CVH-125 200m3/h x 110mLC (S.G.=0.8, Vis.=1cSt)
Recruitment Results
17,000 DWT Oceangoing chemical tanker 8,900 DWT Oceangoing chemical tanker
Related and Optional Products
■Hydraulic oil monitoring system
・Supports auxiliary control of hydraulic oil contamination levels.
・If the standard value is exceeded, the system automatically notifies the designated e-mail
address.
■Thermal oil heater unit (can be sold separately)
・For heating and keeping warm water-prohibited cargo liquids.
・The drive system can be hydraulically or electrically driven.
・We select and customize the most suitable equipment according to your specifications,
such as number of tanks, tank volume, and temperature conditions.
■Oil cleaner unit (can be sold separately)
・Stabilizes and maintains the cleanliness of hydraulic oil and lubricating oil.
Contributes to the reduction of environmental impact by extending the service life of lubricants.
・The external power supply for the circulation pump is 100 VAC or 200 VAC.
The unit can be operated as a stand-alone unit.
・Portable and easy to change the load.
・We will select and customize the most suitable equipment according to your specifications,
including the number of tanks, tank volume, and temperature etc.
